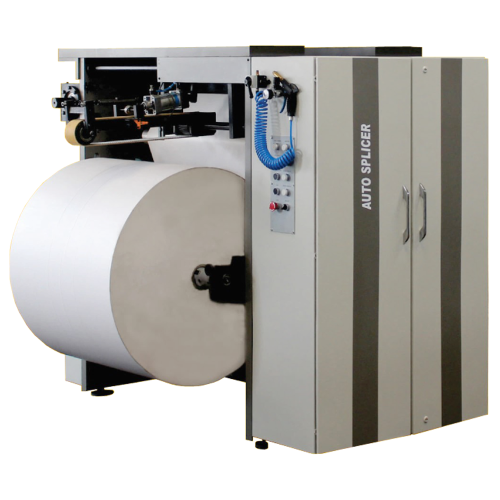

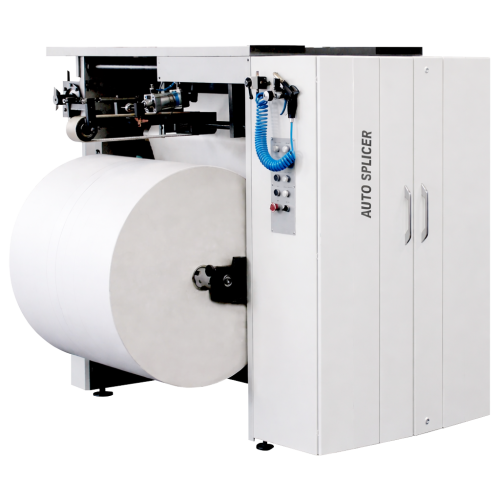

Free Standing and Shaftless Auto Splicer
Free Standing and Shaftless Auto Splicer
ADVANTAGES
- Can be incorporated with any make of press.
- Can be installed at 90degree
- Can be installed in basement with overhead printing tower.
| Max. Web Width | 850 – 915 mm |
| Min. Web Width | 500 mm |
| Max. Reel Diameter | 1060 mm |
| Web Core Diameter | 76 mm |
| Dia. For Pasting Cycle | 400 mm |
| Braking System | Pneumatic Braking System Controlled by Dancing Rollers |
| Side Lay Adjustment | -/+ 10 mm |
| Electricals | Equipped with PLC, Auto Reel Arm Positioning, Automatic Pasting Cycle |
| Optional | Tension In feed |
