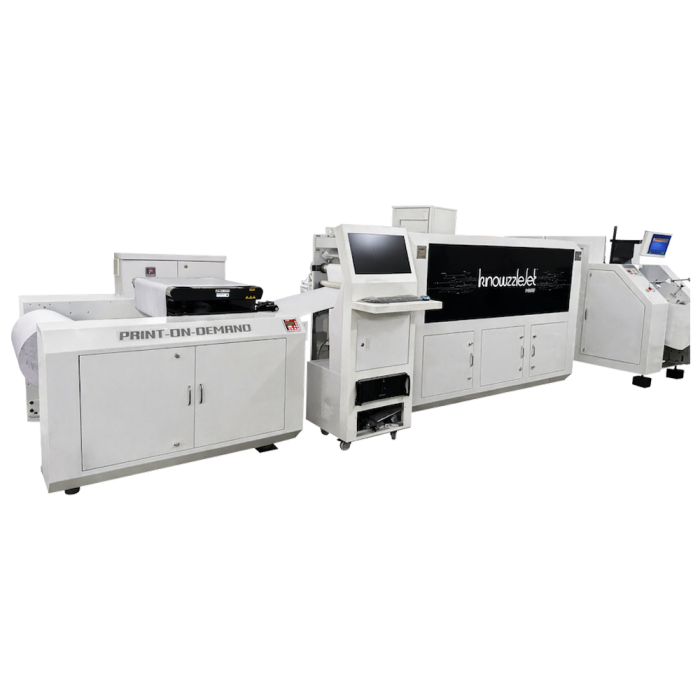

M-880 (Variable Cut) Inkjet Web Press Machine
Knowzzlejet M-880 ( Variable Cuts ) Monochrome Inkjet Web Press
ROLL TO FOLD (A4 / A5 ) 16 PAGES
Specifications of Substrate Transport System
- Web width: up to 900 mm
- Print width: As per the Inkjet Printing system option selected
- Roll Un-winder with servo driven Web Tension – Infeed & Outfeed Drives
- Print Section with In-feed / out-feed Servo Driven rolls
- Space for Dual print stations for Duplex printing
- Delivery device: Motorized variable sheet cutting system, servo driven
- Touch screen HMI console on machine
- Minimum Working Space Requirement:10.0 Meter x 9.0 Meter
- Weight: 8.5 tons (Approx.)
- Power requirement: 415 V / 3 phase / 50 Hz (35 KW)
Technical Specifications
| Model | JETSCI® KnowzzleJet M 880 |
| Inkjet Print Head Type | Memjet Duralink Inkjet Printhead Technology |
| Print width | Up to 880 mm (34.50 Inch) Duplex |
| Print Resolution (s) | 1600X1600 dpi, 1600X954 dpi, 1600 X 790 dpi, 1600×580 dpi |
| Drop Size | 2.1 pL |
| Max. Rated Speed | Up to 197 m/min (660 m/min.) * |
| Print Head Control Mechanism | Automatic capping, cleaning, and positioning |
| Ink Type | Water Based – Pigment |
| Color(s) | Black – Monochrome |
| Data Type | PDF printing Capability in Duplex mode |
| Electrical Requirements | Standard configuration – 220V-240 V (Single Phase), 50 Hz, 63 Amps through UPS *To be discussed for final configuration at the time of ordering |
